Additional Features:

• Includes a programmable step attenuator
• Frequency range: 300 kHz to 3 GHz
• Contains precision 7 mm connectors
• Provides the capability to measure reflection and transmission characteristics (including S-parameters) of two-port devices in either direction with a single connection

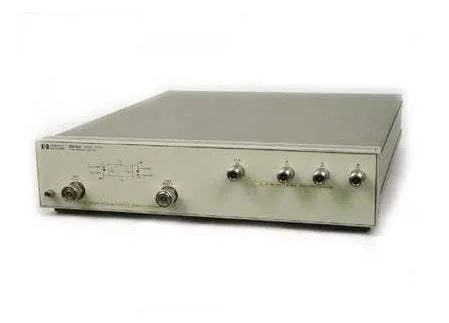

The Agilent 85046A, S-Parameter Test Set, provides the capability to simultaneously measure the transmission and reflection characteristics of 50 ohm devices. The S-Parameter Test Set, is controlled from the analyzer and includes programmable step attenuators. It can be used with the Agilent 8753A/B/C, 8753D/E/ES Option 011, 4395, 4396 and selected 8702 lightwave component analyzer configurations The Agilent 85046A, S-Parameter Test Set, provides the capability to measure reflection and transmission characteristics (including S-parameters) of two-port devices in either direction with a single connection.
