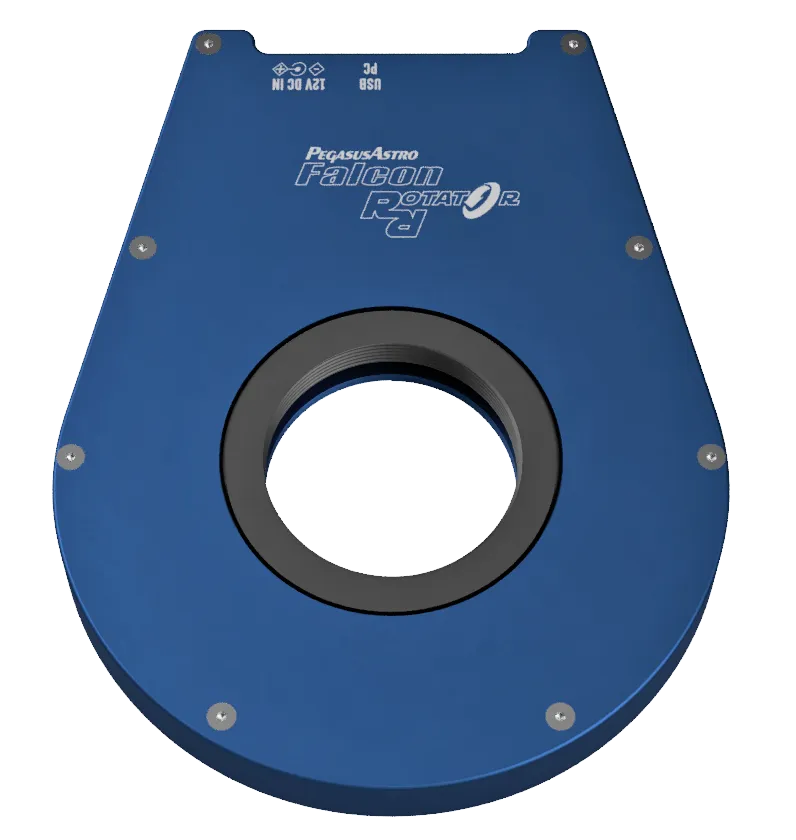

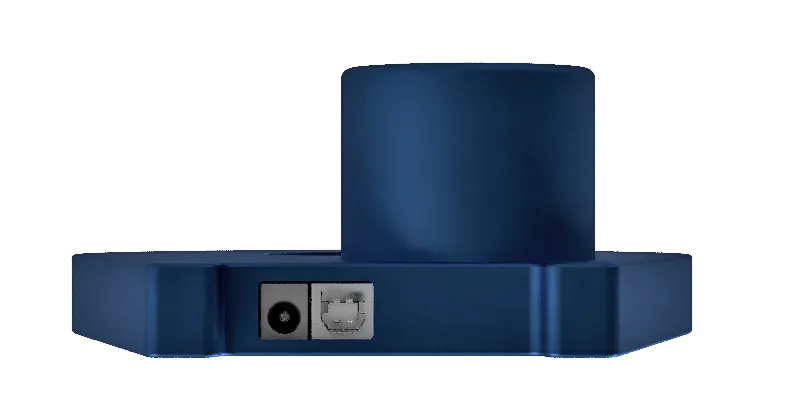

Pegasus Astro – Falcon Rotator is a light-weight, low profile camera field rotator. Do not be fooled by its thin size! It can lift and handle heavy image trains – dead accurate! Very easy to operate via ASCOM drivers or standalone software will make your life easier to automatically adjust with precision your camera field.

Description

Precise Rotation

A powerful geared / low backlash, quiet stepper motor ensures that the rotator will precisely lock to the designated degrees. Mechanics inside the focuser guarantee zero flex at any point during a full circle rotation.

Low Profile

Thickness of the rotator is 18mm / 0.7”
When you use the M54 to M48 adapter the backfocus is 1mm (18 1 = 19mm)
Weight is 700grams. Both openings of the rotator are M54 threaded (pitch 0.75mm)

Rated Load

Falcon Rotator has been tested at 6Kg / 13.2lbs of imaging setup.
The sophisticated mechanical design that uses 6 stainless steel bearings can easily handle high payloads with zero flexure.

Cable Wrap Prevention

Rotator does not allow a clockwise turn above 220 degrees. It will turn anti-clickwise when it has to be moved above 220 degrees.

A nice cable wrap/snag prevention feature out of the box.

Adapters for both sides (included)

We provide (in the box) two different adapters for both sides:

Telescope Side: M54 male to 2” Nosepiece (1.5mm thickness)
Camera Side: M54 Male to M48 Male Adapter (2.0mm thickness)
For optional adapters

The M54 adapter black ring on the camera side of the Falcon Rotator sticks out by almost 1mm (so actual back-focus is 18 1 =19mm)

Backfocus drawing can be found on the left (click for enlarge):

De-Rotation support for Alt/Az Mounts

Rotator has the mechanical precision to achieve field de-rotation. Supplied software calculates Rate of Rotation (RoR) based on the site latitude, target altitude and azimuth position.

Examples of images taken with Falcon Rotator & Derotation on a Dobsonian Telescope

Standalone Software

Control the Falcon Rotator from the supplied standalone Windows software.

Unity Platform Support

Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.

A modern frontend allows the full control of all Pegasus Astro devices.

Moreover, a REST JSON api helps developers from 3rd party software to interact with our products.

As we continuously develop our applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases

Specifications

Physical Size	180mm x 140mm x 56mm
Material	Blue Anodised Aluminium
Clear Aperture	54mm / 2.13”
Steps per degree	86.6 steps per degree (31.192 steps per full revolution) (full step drive – can be increased with microstepping)
Payload	6Kg / 13.2lbs
Telescope Adapter	M54 male to 2” Nosepiece (included) (0.75mm pitch)
Camera Adapter	M54 Male to M48 Male Adapter (included) (0.75mm pitch)
Back Focus	18mm / 0.7” ( 1mm if you place M54 adapter)
Weight	0.7Kg / 1.54 lbs)
Connectivity	USB 2.0
Operating Power	12V / 1Amp
