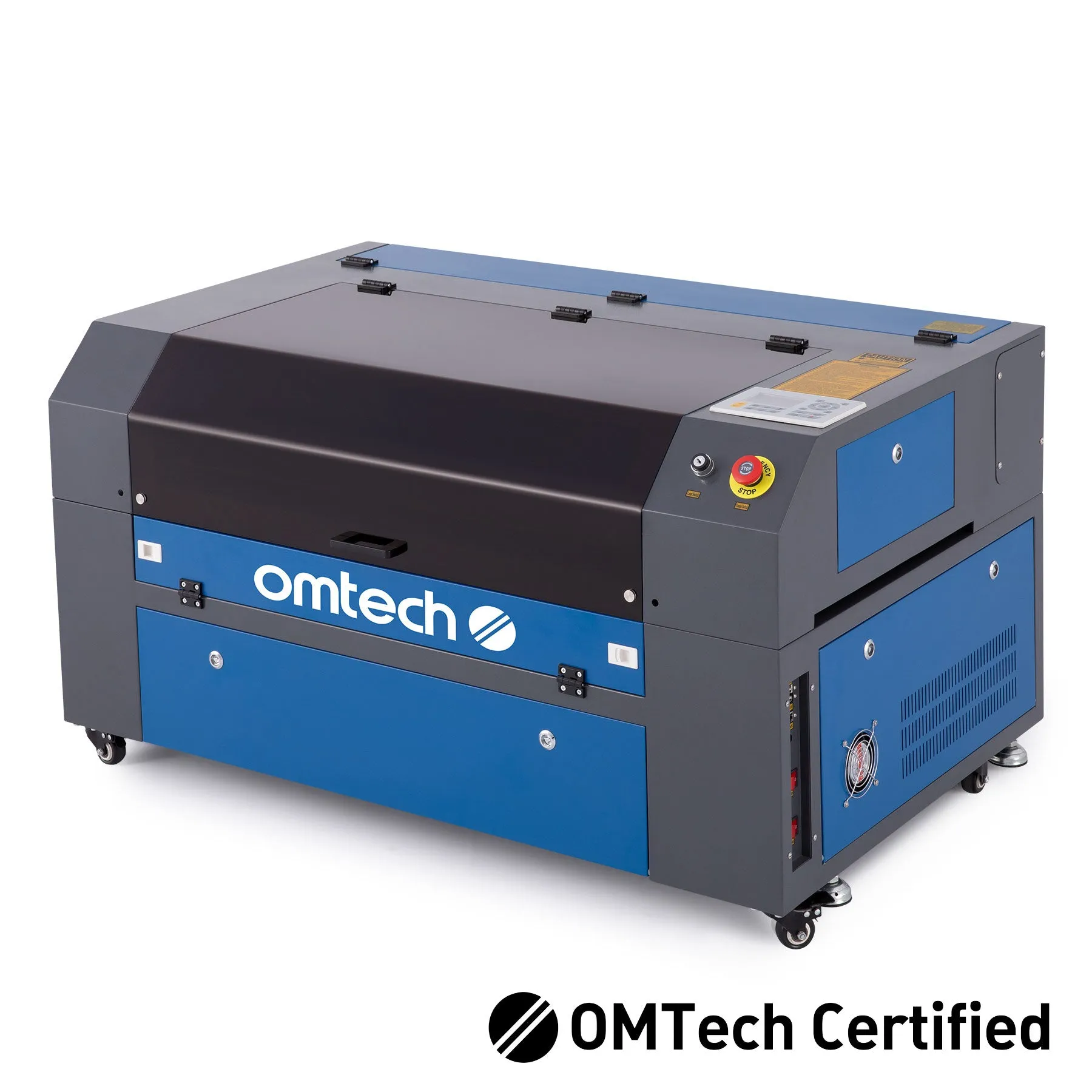

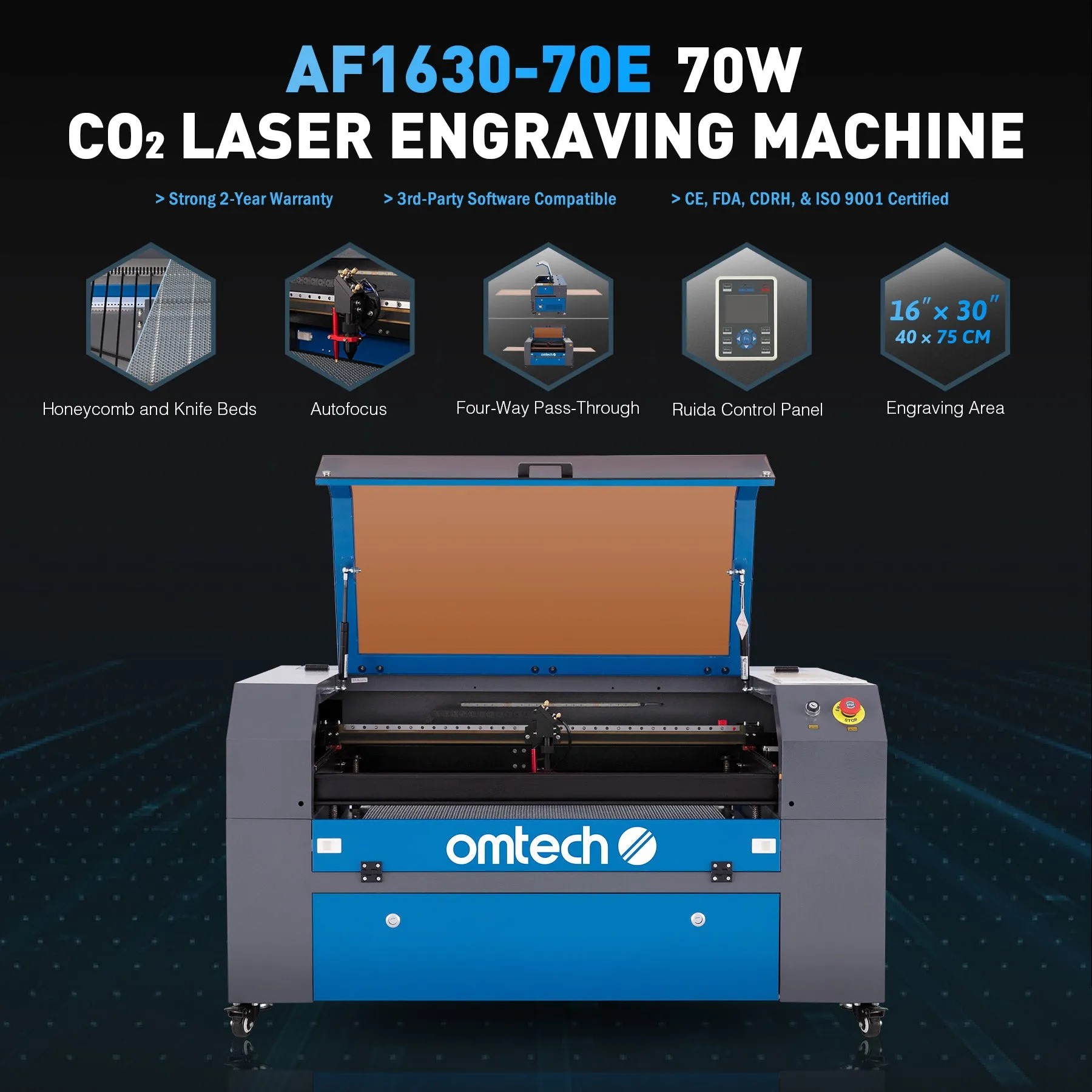

Name: Pre-Owned AF1630-70E - 70W CO2 Laser Engraver Cutting Machine with 16” x 30” Working Area (with Auto Focus)
SKU: 885205

Product Details ＋

Financing is not available for pre-owned units

Condition:

Functional: This machine has been previously owned, returned to the Anaheim headquarters, and repaired and tested by OMTech Specialists. The device may have some signs of cosmetic wear and/or structural damage, but is fully operational and functions 100% as intended.

Good: This machine has been previously used, returned to the Anaheim headquarters, and repaired and tested by OMTech Specialists. The device may have some cosmetic wear and/or signs of use but is fully operational and functions 100% as intended.

Great: This machine has been previously used, returned to the Anaheim headquarters, and repaired and tested by OMTech Specialists. The device has minimal signs of use but is fully operational and functions 100% as intended.

PLEASE NOTE: The images shown in this listing do not fully represent the cosmetic condition of the machine.

OMTech Certified:

This machine has undergone a thorough QA inspection by an OMTech Specialist, and each component has been repaired and tested for full operational performance.

Photo Guide:

View condition examples of previous Pre-Owned models:

Safe Shipping:

This unit is carefully secured to a reinforced pallet and protected with several layers of bubble wrap for a dependable delivery.

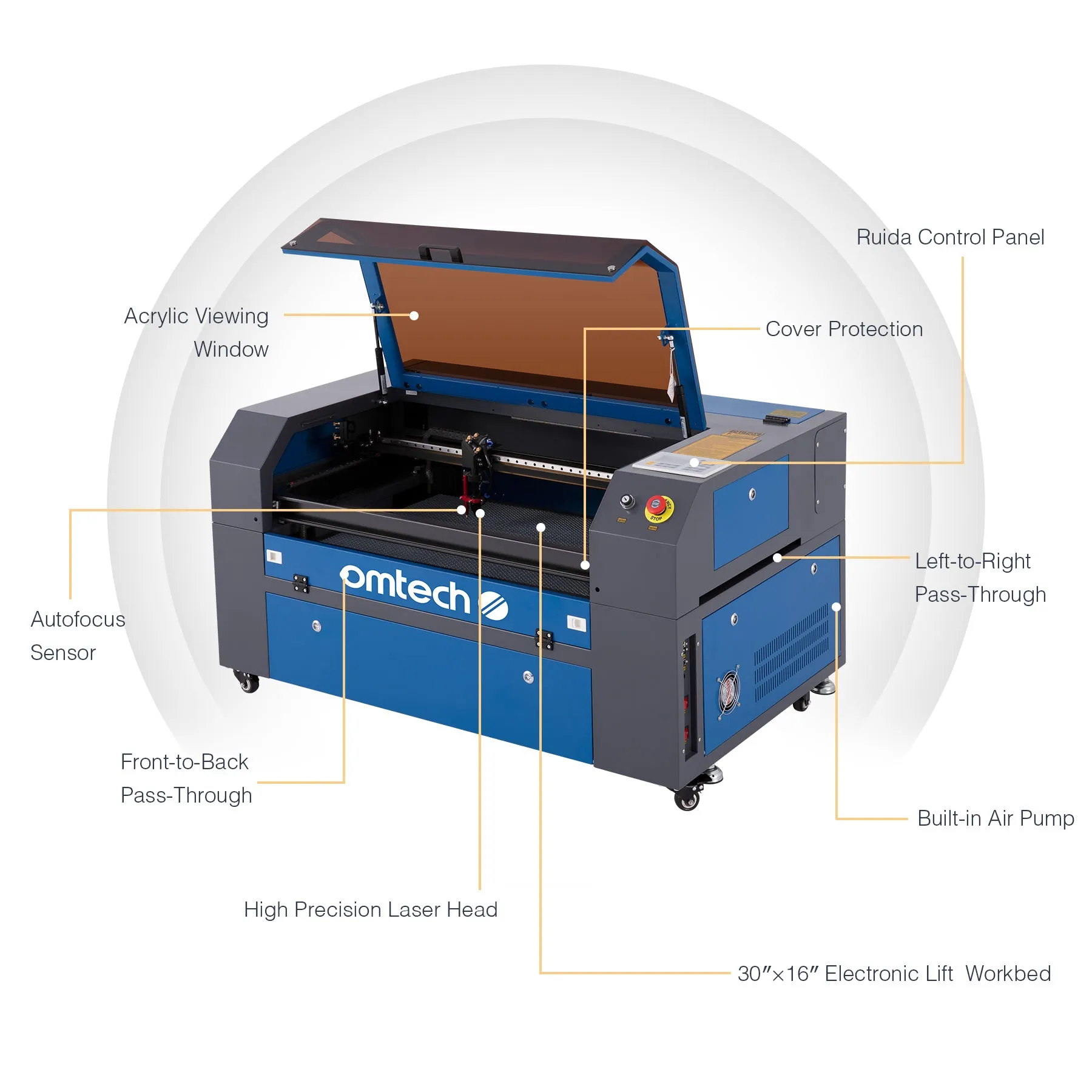

Features:

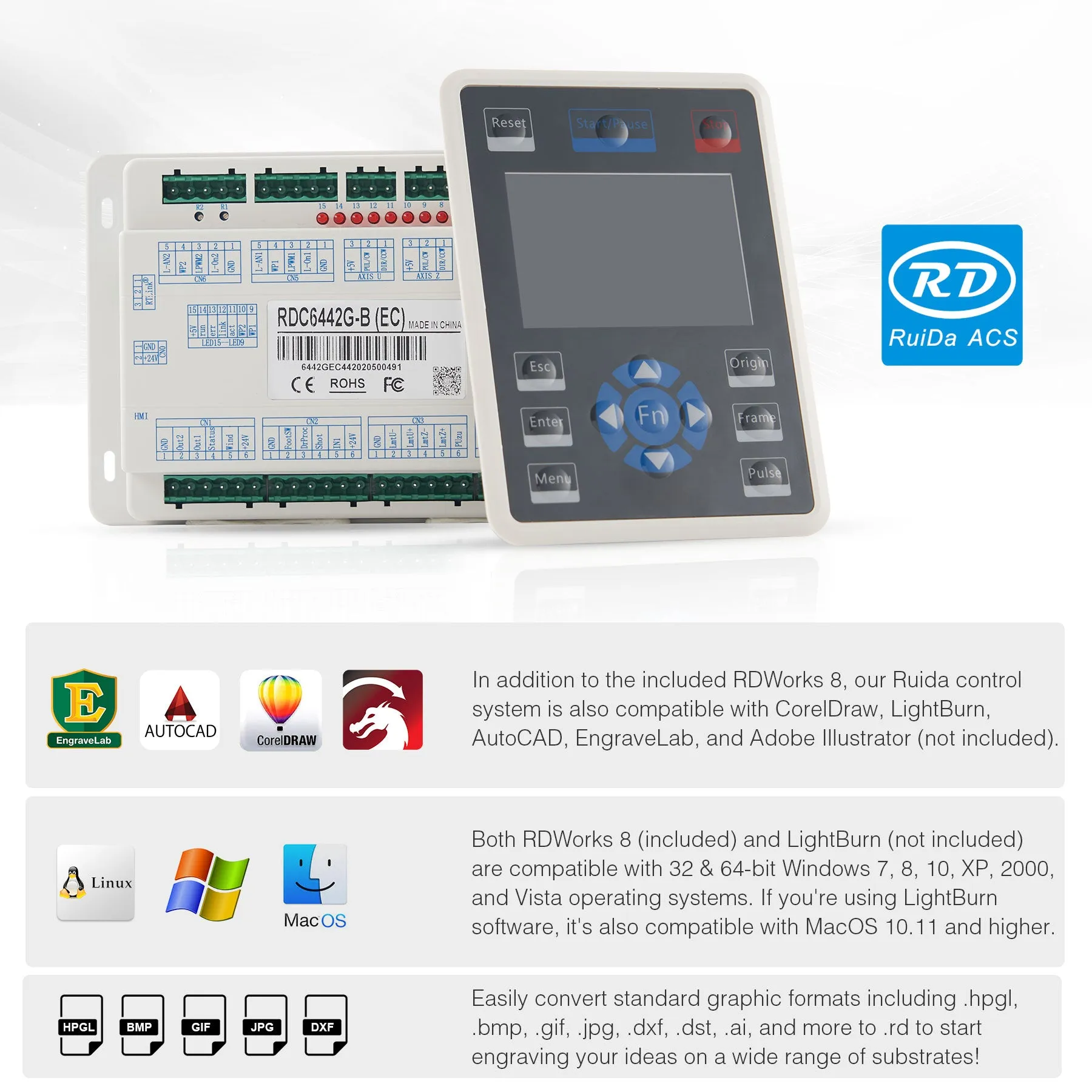

Digital Controller

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8.

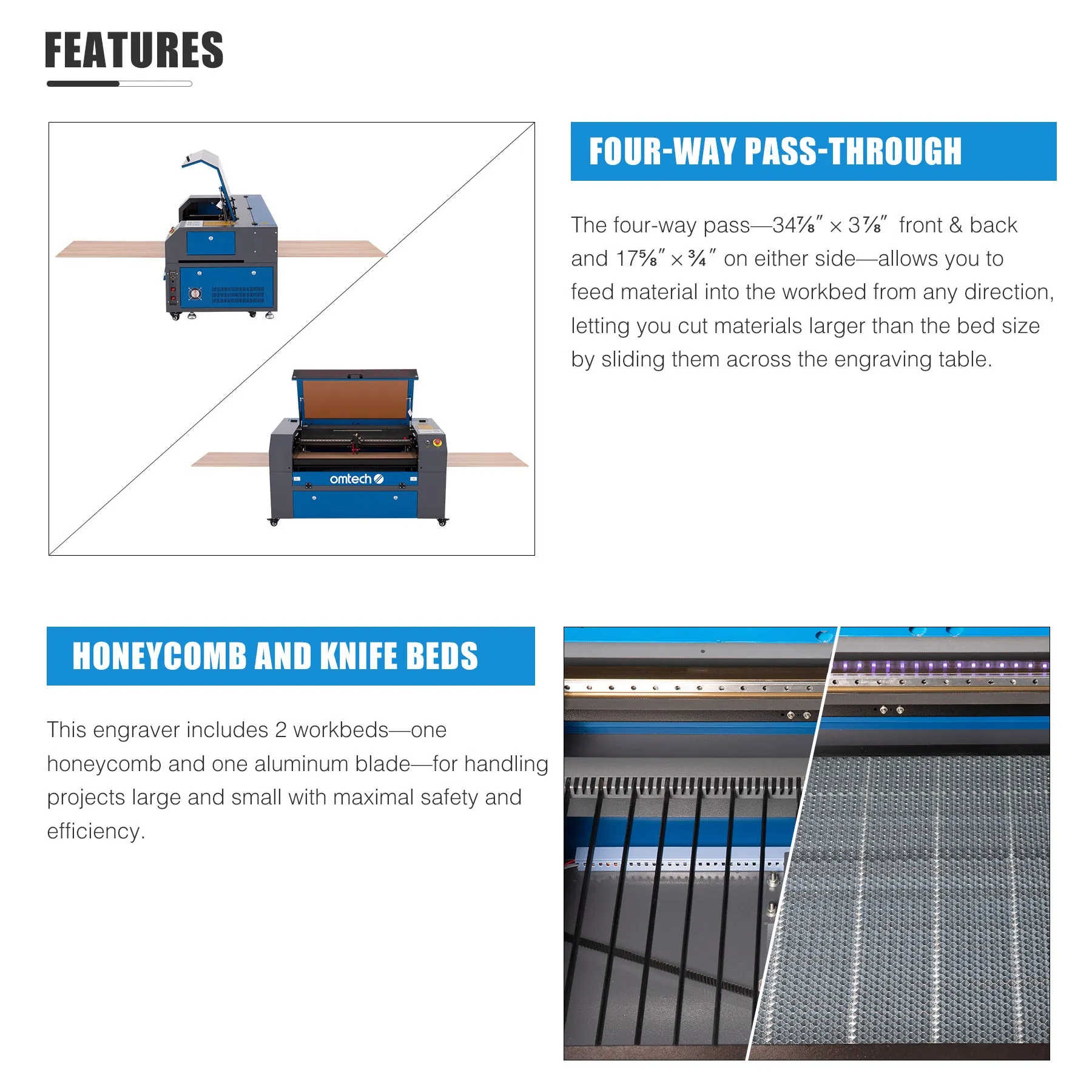

Four-Way Pass-Through

The four-way pass—34⅞″×3⅞″ front & back and 17⅝″×¾″ on either side—allows you to feed material into the workbed from any direction, letting you cut materials larger than the bed size by sliding them across the engraving table.

Honeycomb and Knife Beds

This engraver includes 2 workbeds—one honeycomb and one aluminum blade—for handling projects large and small with maximal safety and efficiency.

High-Performance DC Tube

Our 1000 mm CO₂ laser tube provides 70W of power for up to 2000 hours or lasts twice as long when consistently used at lower settings.

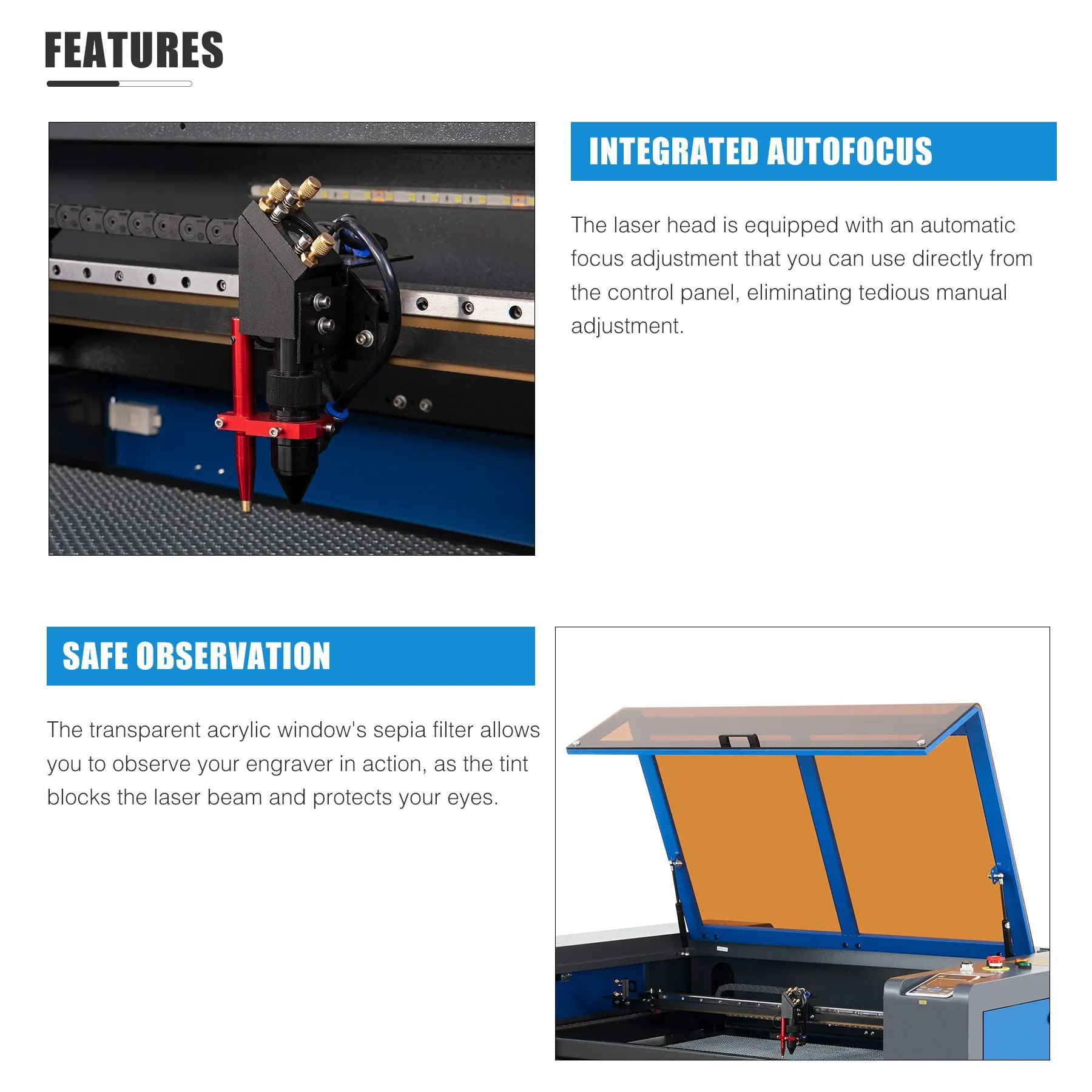

Integrated Autofocus

The laser head is equipped with an automatic focus adjustment that you can use directly from the control panel, eliminating tedious manual adjustment.

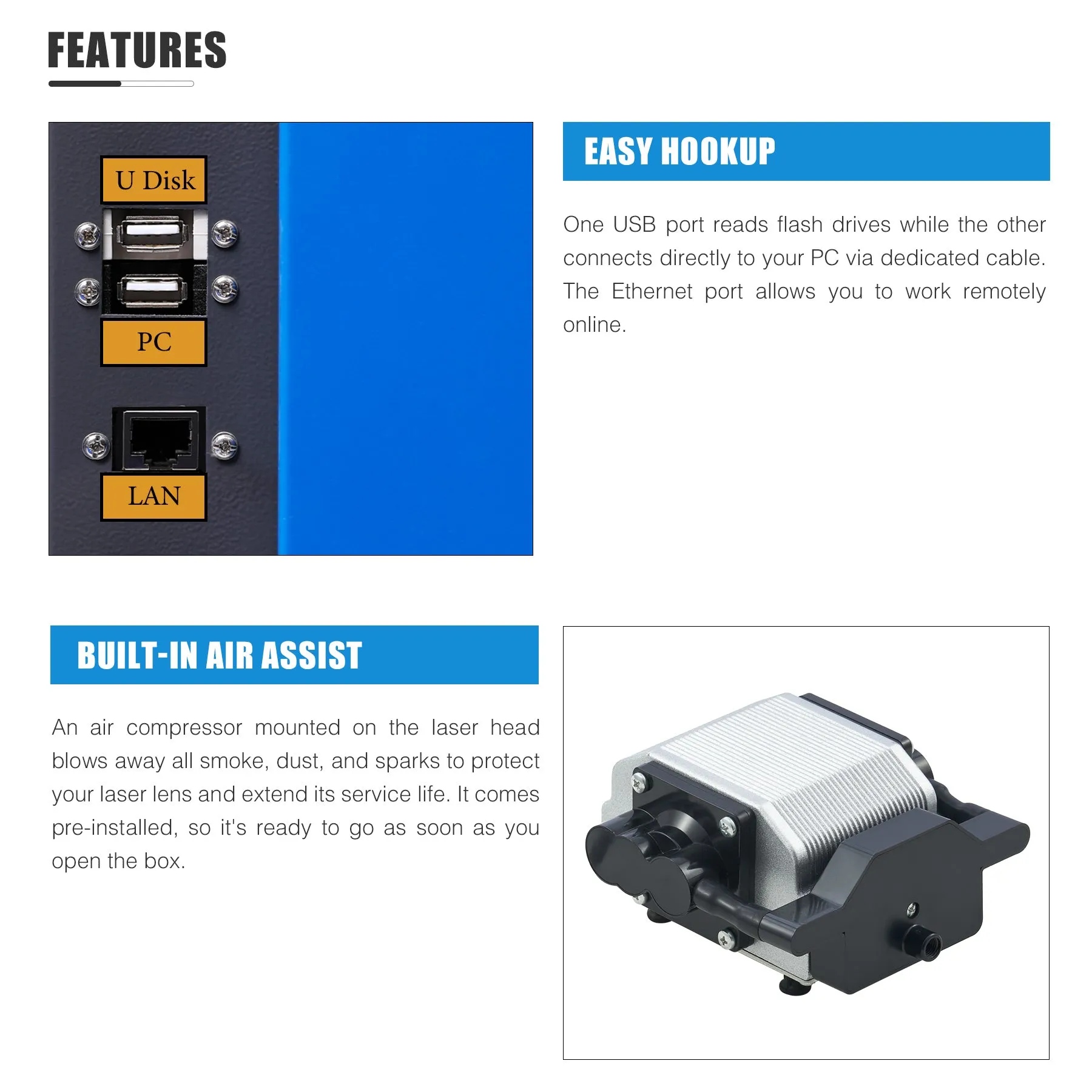

Easy Hookup

One USB port reads flash drives while the other connects directly to your PC via dedicated cable. The Ethernet port allows you to work remotely online.

Linear Rail Guiding System

Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.

Red Dot Guidance

A red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies positioning sizes, allowing an effortless project setup process.

Adjustable Laser Nozzle

The laser nozzle can extend downwards up to 1.75” or be fully retracted, allowing more control over different focal distance setups.

Built-in Air Assist

A pre-installed air compressor guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping your workbed cleaner and engravings more precise.

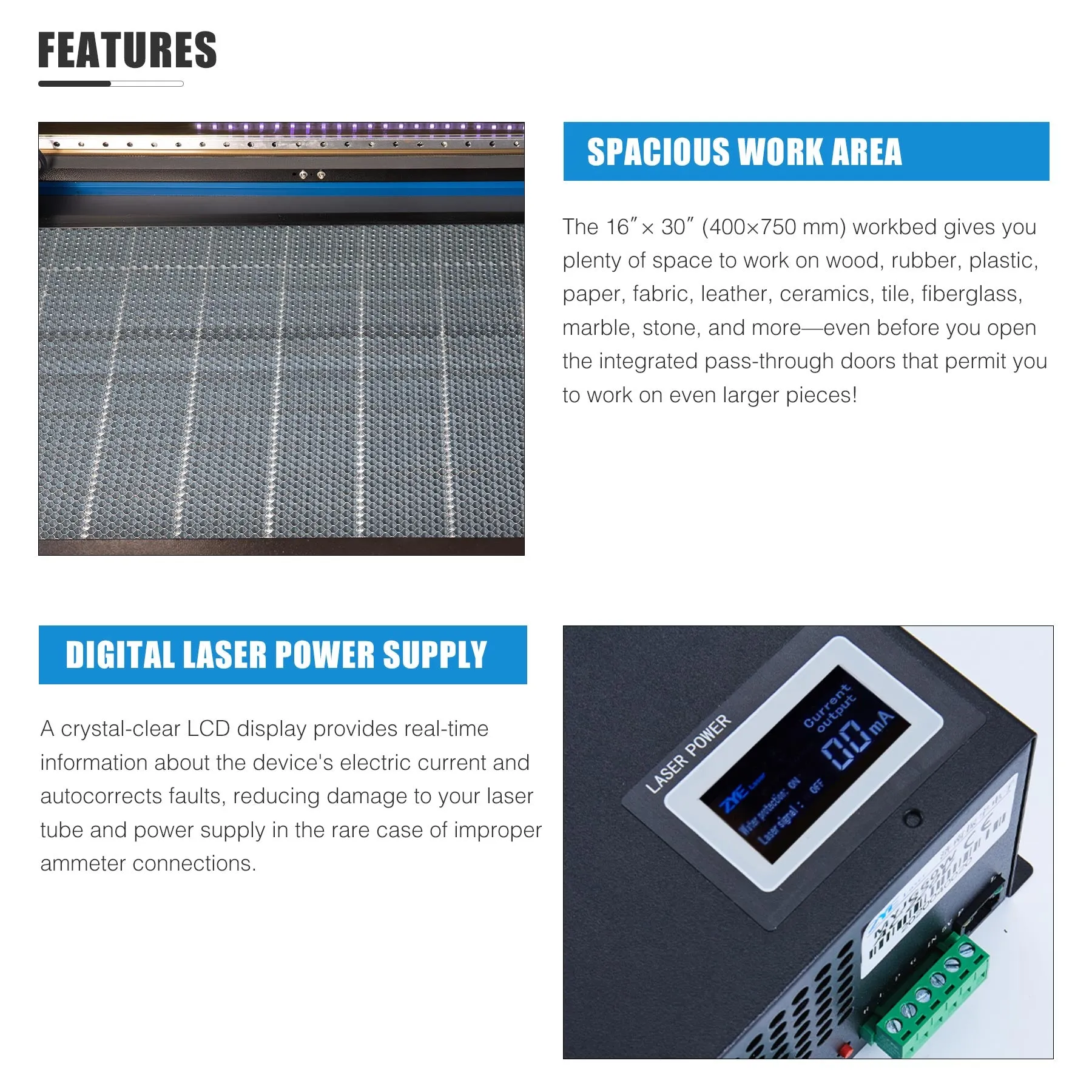

Spacious Work Area

The 16″ × 30″ (400×750 mm) workbed gives you plenty of space to work on wood, rubber, plastic, paper, fabric, leather, ceramics, tile, fiberglass, marble, stone, and more—even before you open the integrated pass-through doors that permit you to work on even larger pieces!

Water Cooling System

Pre-installed hoses along with the included water pump allow for a fast and easy setup. Only use with distilled water, ensuring it stays between 60–70°F (16–21°C).

Water Flow Sensor

A pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if water stops circulating through the laser tube.

Digital Laser Power Supply

A crystal-clear LCD display provides real-time information about the device's electric current and autocorrects faults, reducing damage to your laser tube and power supply in the rare case of improper ammeter connections.

Safe Observation

The transparent acrylic window's sepia filter allows you to observe your engraver in action, as the tint blocks the laser beam and protects your eyes.

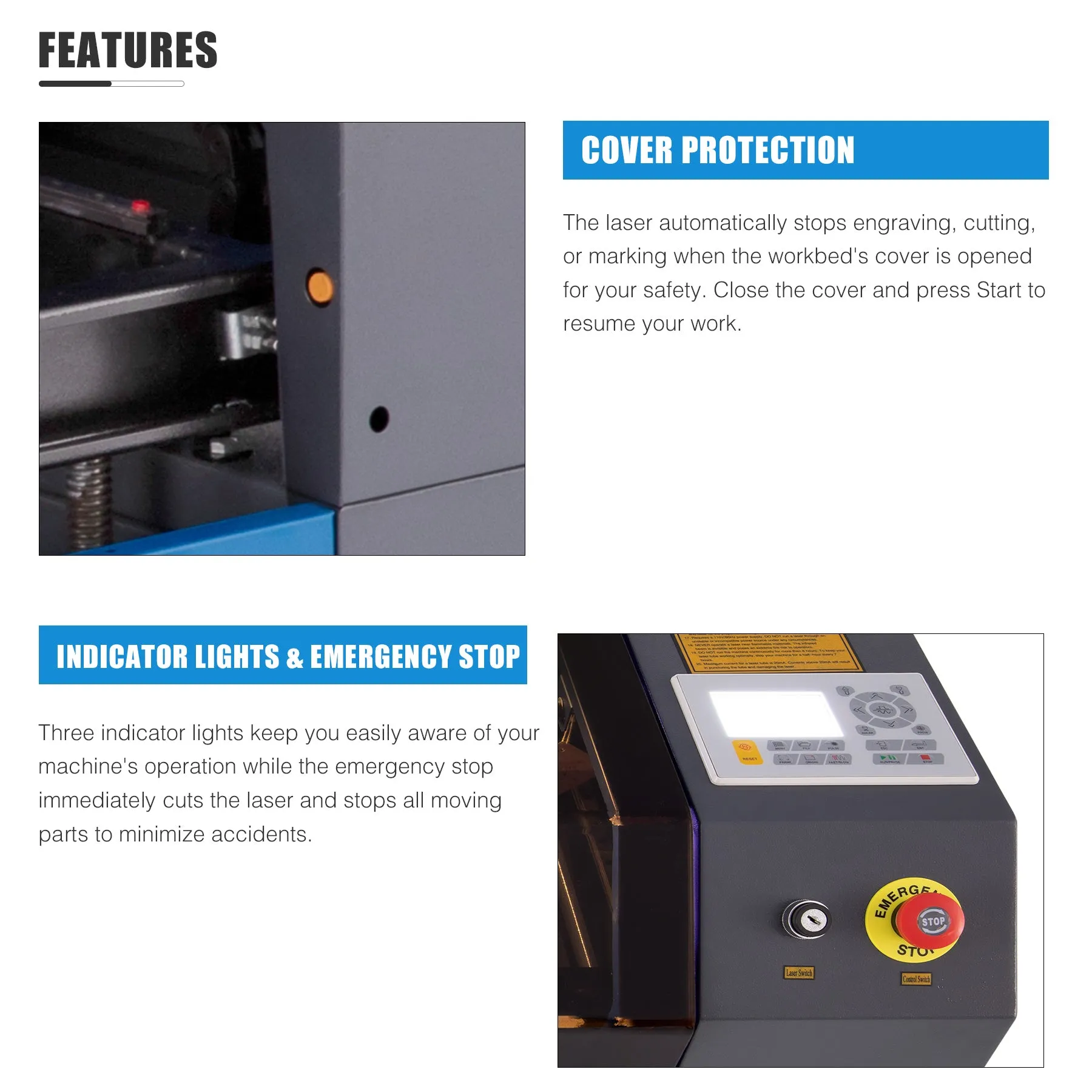

Cover Protection

The laser automatically stops engraving, cutting, or marking when the workbed's cover is opened for your safety. Close the cover and press Start to resume your work.

Emergency Stop

The E-Stop safety button immediately stops the machine in case of emergency.

High-Precision Laser Head

The industrial-grade laser head delivers a stable laser beam over the long service life of the machine, while the red-dot locator helps to quickly indicate engraving points and marks the engraving path, allowing effortless setup and operation.

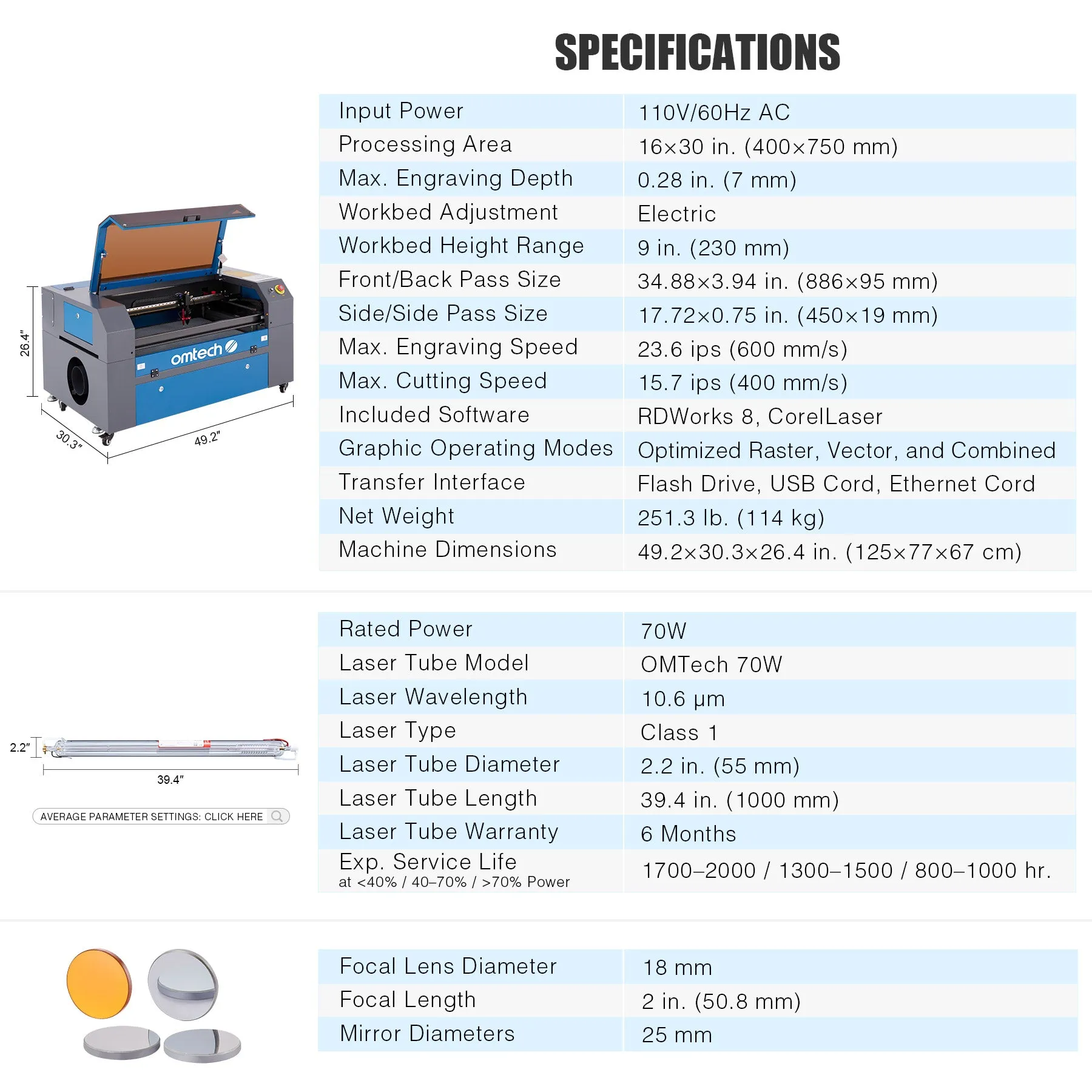

Specification

MPN: AF1630-70E
Model: SH-G470
Input Power: 110V/60Hz AC
Processing Area: 16×30 in. (400×750 mm)
Max. Engraving Depth: 0.28 in. (7 mm)
Workbed Adjustment: Electric
Workbed Height Range: 9 in. (230 mm)
Front/Back Pass Size 34.88×3.94 in. (886×95 mm)
Side/Side Pass Size: 17.72×0.75 in. (450×19 mm)
Max. Engraving Speed: 23.6 ips (600 mm/s)
Max. Cutting Speed: 15.7 ips (400 mm/s)
Included Software: RDWorks 8, CorelLaser
Graphic Operating Modes: Optimized Raster, Vector, and Combined
Transfer Interface: Flash Drive, USB Cord, Ethernet Cord
Net Weight: 251.3 lb. (114 kg)
Machine Dimensions: 49.2×30.3×26.4 in. (125×77×67 cm)

Laser Tube Specs

Rated Power: 70W
Laser Tube Model: OMTech 70W
Laser Wavelength: 10.6 μm
Laser Tube Diameter: 2.2 in. (55 mm)
Laser Tube Length: 39.4 in. (1000 mm)
Laser Tube Warranty: 6 Months
Exp. Service Life at <40% / 40–70% / >70% Power: "1700–2000 / 1300–1500 / 800–1000 hr.

Lens & Mirror Specs

Focal Lens Diameter: 18 mm
Focal Length: 2 in. (50.8 mm)
Mirror Diameters: 25 mm

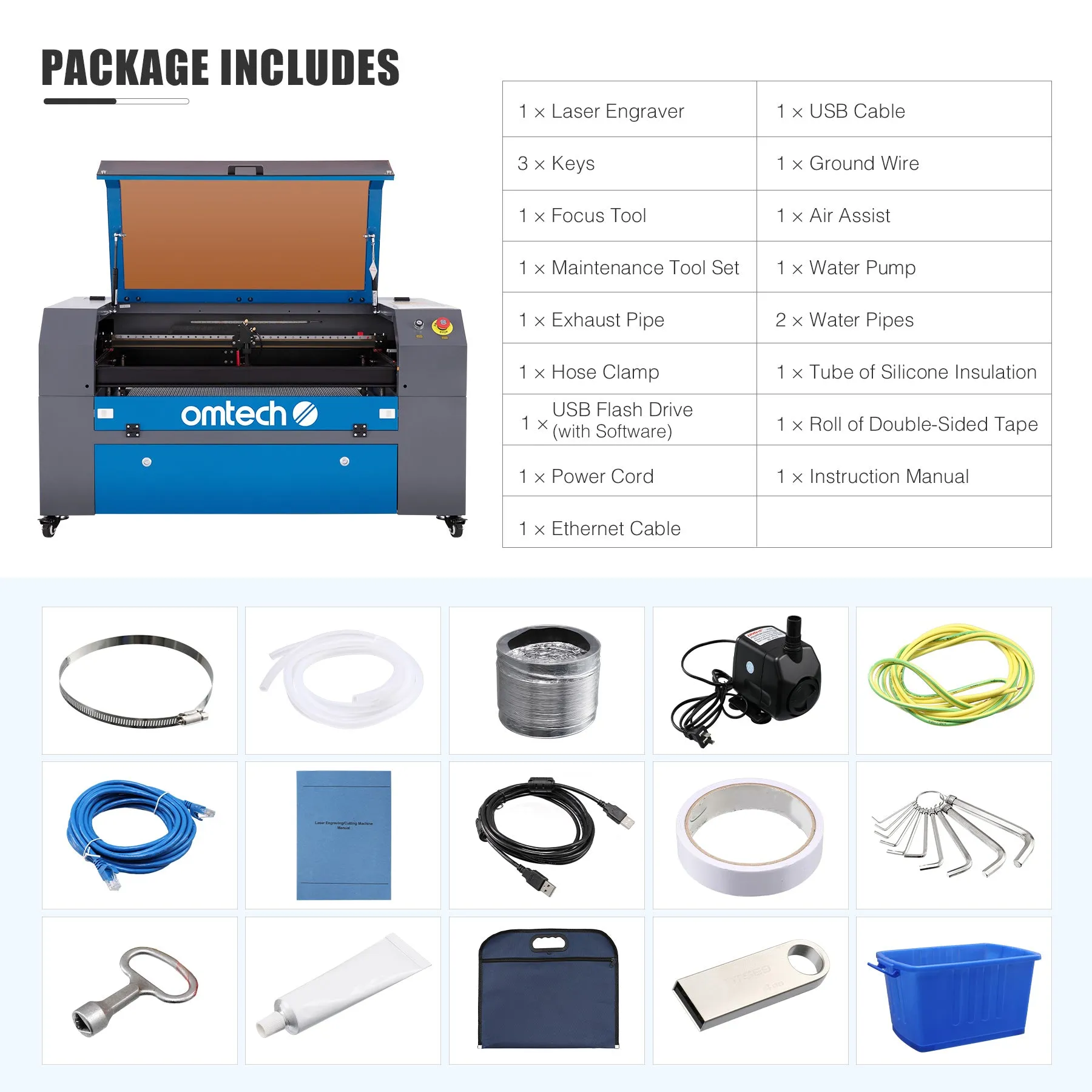

Package Includes

1 x Laser Engraver Machine
1 x Water Pump
1 x Storage Tank
1 x Ethernet to Ethernet Cable
1 x Grounding Wire
1 x Venting Exhaust Duct (4 ft. max. length)
2 x Water Hoses
1 x USB Type-A to Type-A Cable
1 x USB Drive with Software
1 x Stainless Steel Clamp
10 x Hex Wrenches
1 x Double-sided Tape
1 x Power Cord
1 x Accessory Bag
2 x Keys
1 x Silicone Sealant
1 x Instruction Manual

Warranty:

Great: 1-year warranty on machine parts and hardware, 3-month warranty on laser tubes and power supplies
Good: 6-month warranty on machine parts and hardware, 3-month warranty on laser tubes and power supplies
Functional: 3-month warranty on machine parts and hardware, 1-month warranty on laser tubes and power supplies

Certifications:

FDA Compliant
CE Certification
ISO9001 Quality Certification
One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

Compatible Materials:

Laser Cutting:
