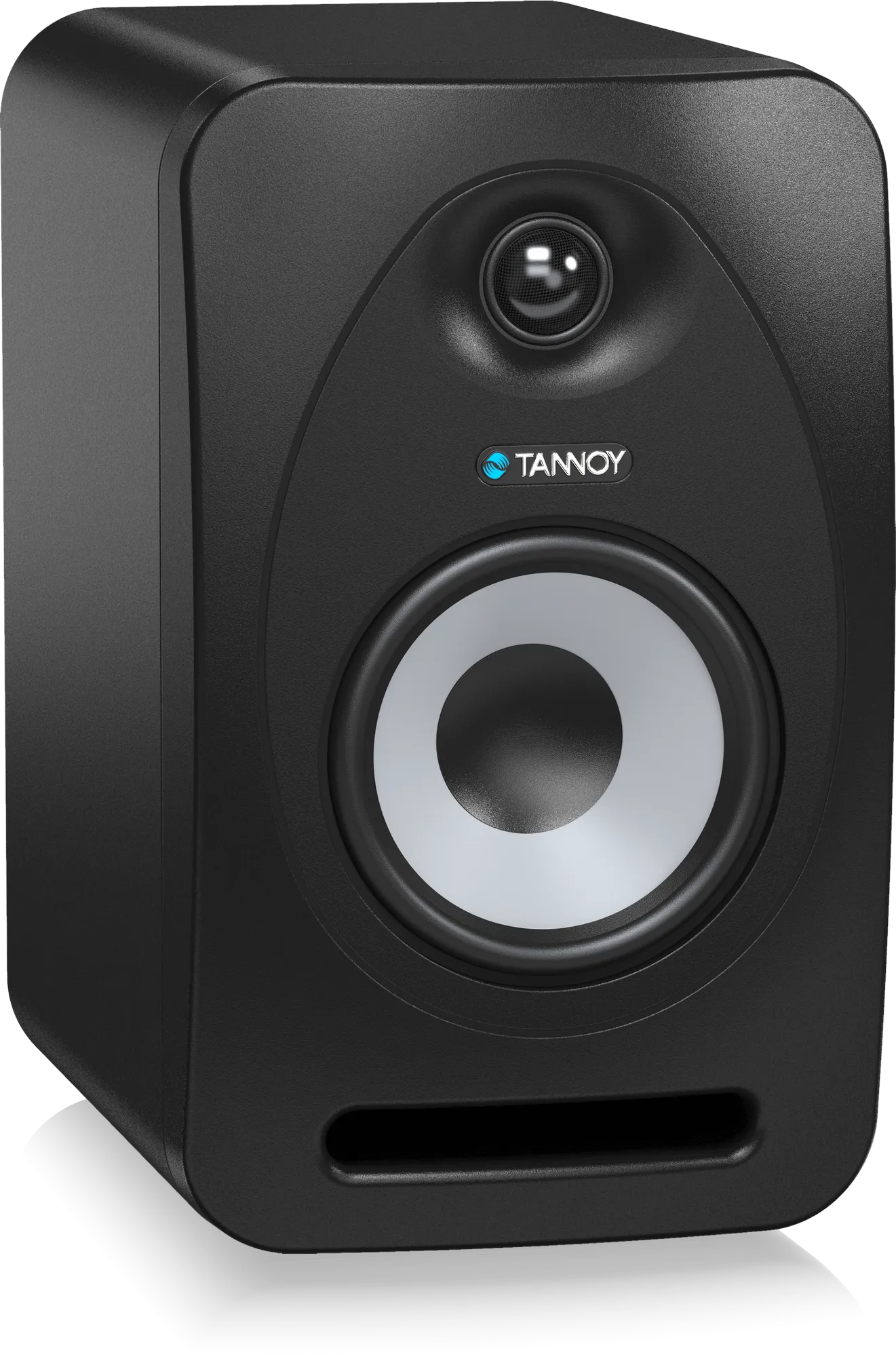

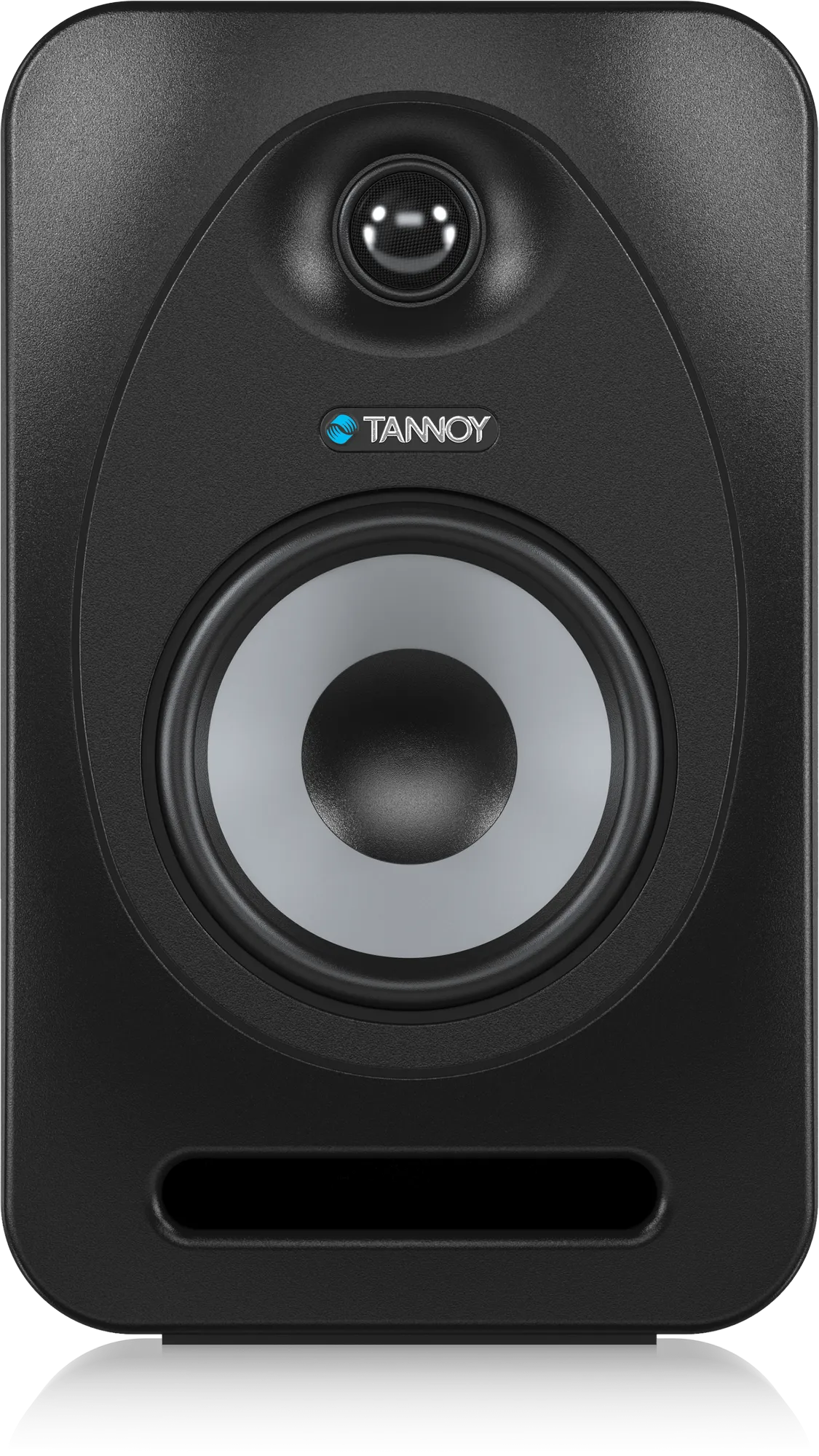

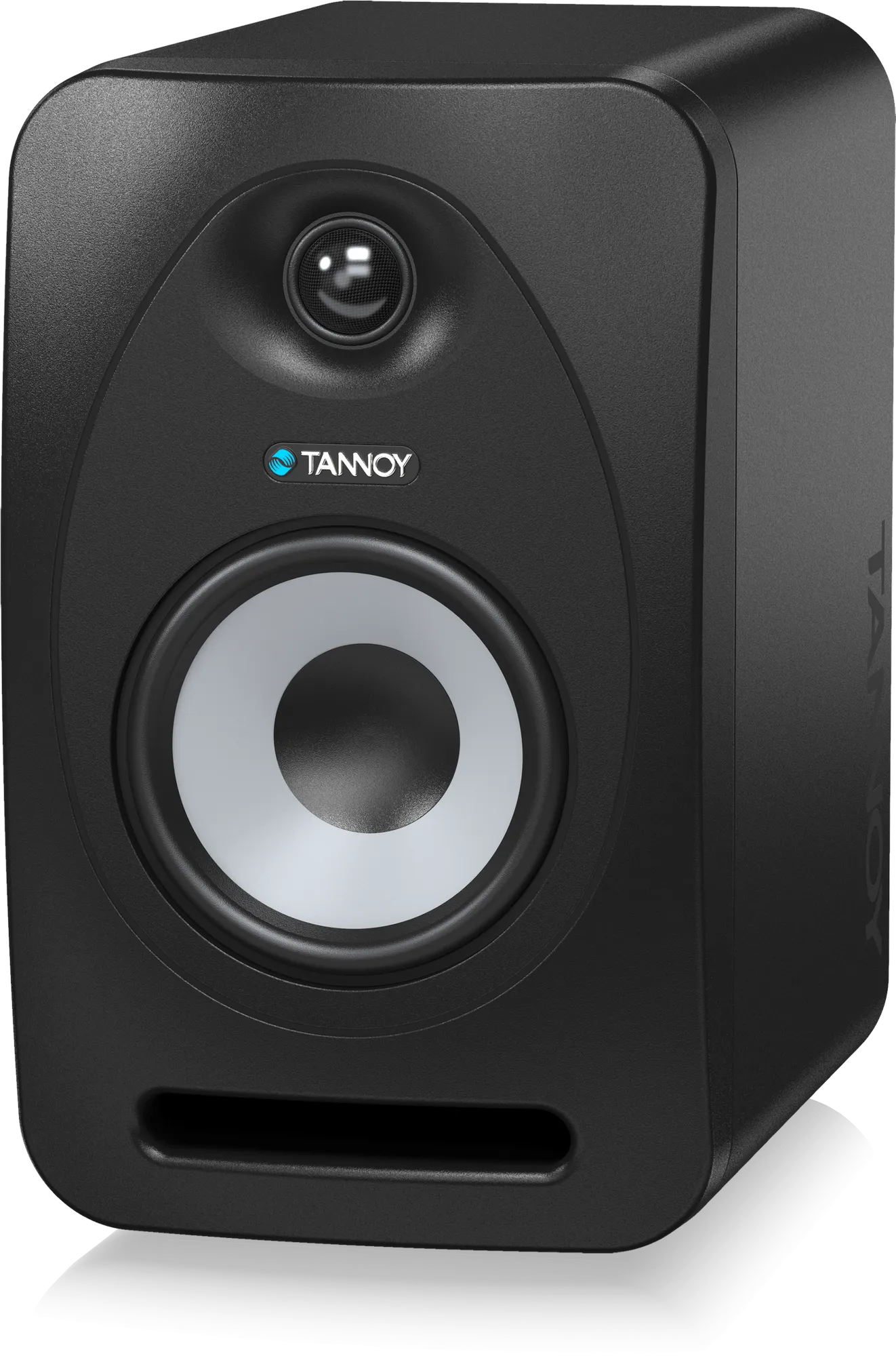

Tannoy REVEAL 402

70W 4\ Bi-Amplified Ultra-compact Studio Reference Monitor with Tuned Front-Firing Bass Port"

Product Features

• Reference monitor ideal for desktop recording or secondary monitoring in personal studios
• 70 Watt custom bi-amped design delivers impressive sound from an ultra-compact enclosure.
• 4" custom high-efficiency low frequency driver for extended bass response
• ¾" soft-dome 'Poke-Resistant' tweeter for detailed high frequency reproduction
• Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance.
• Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix.
• Rubberized foam base provides acoustic isolation.
• Adjustable equalization to match your listening environment.

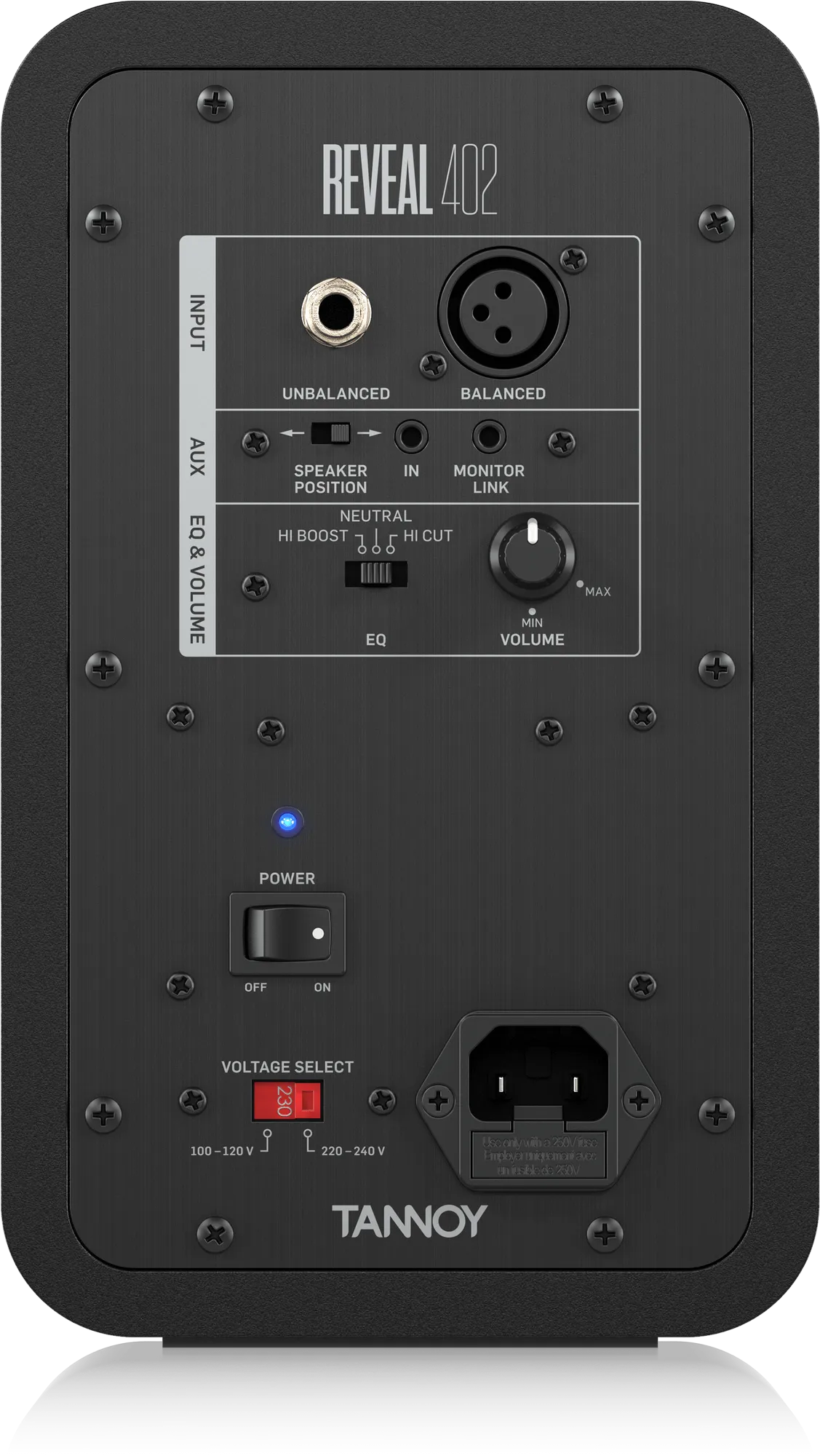

• Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
• 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)
• Tannoy - 90 years of British audio innovation

REVEAL 402

Custom tweaked by TANNOY’s in-house speaker guru, Dr. Paul Mills, the active cross-over filters of REVEAL 402 have impeccable timing.

This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.

If you’re anything like us, you’re not only working on mixes but also listening to your favourite music! REVEAL 402 gives you the ultimate pathway for both.

With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favourite music player and link your monitors for an instant stereo setup – no need for external interfaces.

Specification

-General Frequency Response            56 Hz -48 kHz

-Max SPL         101 dB

-Membrane Sizes HF   ¾" Soft Dome (19 mm)

-LF/Mid Range 4” (100 mm)

-Bi-amp Output Power, RMS Power Output   50 Watts

-LF/Mid Range 25 Watts

-HF       25 Watts

-THD    < 0.9 %

-Input Types and Impedances Balanced        XLR, 20 kOhm

-Unbalanced    ¼" Jack, 10 kOhm

-AUX Link         Mini Jack, 10 kOhm

-AUX Link Output        Mini Jack

-EQ Options HF EQ Settings    -1.5 dB HF Cut / Neutral / 1.5 dB HF Boost

-Crossover Frequency 2.8 kHz

-Low Frequency Alignment     Optimized Front Port

-Cabinet Dimensions HxWxD, inches  9.5 x 5.8 x 8.4 HxWxD, mm     240 x 147 x 212
